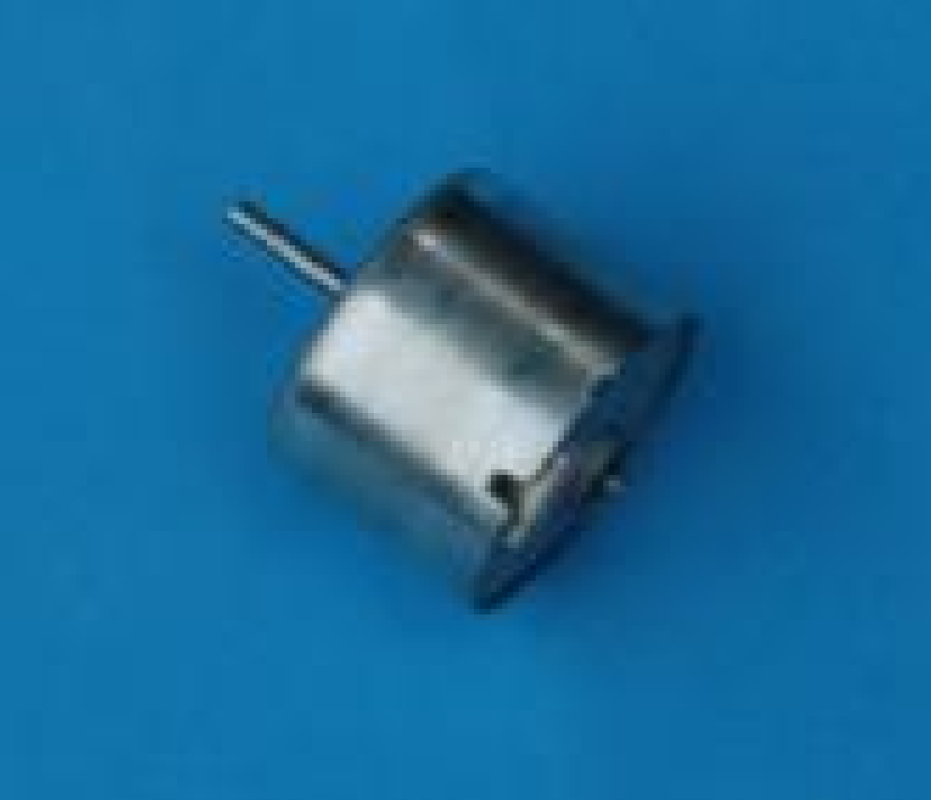

BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | UCHI |
| Certificación: | Completed |
| Número de modelo: | BLDC 2418 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1000pcs |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Estándar |
| Tiempo de entrega: | 5-7 días |
| Condiciones de pago: | T/t, unión occidental |
| Capacidad de la fuente: | 5000 piezas de piezas |
|
Información detallada |
|||
| Rango operativo: | 9V ~ 16V/19 ~ 26V | Nominal: | 12V/24 V constante |
|---|---|---|---|
| Certificado: | 3C | Velocidad sin carga r/min: | 11900 rpm max |
| Corriente sin carga A: | 0.29 max | Velocidad a la máxima eficiencia: | 8891 rpm max |
| Corriente a la máxima eficiencia: | 0.82A Max | EFF con máxima eficiencia: | 61.4% max |
| Resaltar: | Long Lifespan Brushless Motors,High Efficiency Brushless Motors,2418 Brushless Motors |
||
Descripción de producto
BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Features
1.High Efficiency and Long Lifespan: BLDC motors are known for their high efficiency, often reaching up to 97%. The BLDC 2418 motor also boasts a long lifespan, with some models capable of continuous operation for up to 15,000 hours.
2.Low Noise and Low EMI: These motors are designed to operate quietly, making them suitable for applications where noise control is important. They also produce low electromagnetic interference (EMI), which is crucial for sensitive electronic environments.

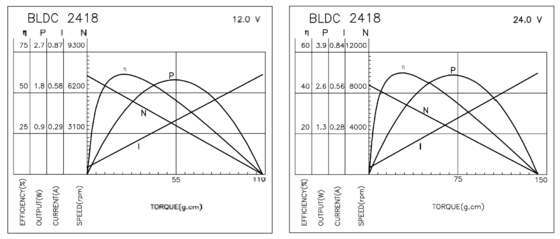

Brushless Motor Technical Data
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | TORQUE | |
| RPM | A | RPM | A | g.cm | % | g.cm | ||||
| BLDC-2418-1 | 9V~16V | 12V CONSTANT | 10250 | 0.29 | 7585 | 0.82 | 73.4 | 5.7 | 57.7 | 282.4 |
| BLDC-2418-2 | 9V~16V | 12V CONSTANT | 7500 | 0.07 | 8863 | 0.194 | 81.5 | 1.2 | 52.8 | 105.0 |
| BLDC-2418-3 | 19V~26V | 12V CONSTANT | 11900 | 0.19 | 8891 | 0.56 | 90.6 | 8.3 | 61.4 | 358.4 |
| BLDC-2418-4 | 19V~26V | 12V CONSTANT | 8700 | 0.04 | 6556 | 0.17 | 32.9 | 2.2 | 54.4 | 144.0 |
TYPICAL APPLICATION:
1.Electric Shaver
2.Home Application
