BLDC 14850 Brushless Motors With Precise Control Low Noise EMI
Datos del producto:
| Lugar de origen: | Dongguan China |
| Nombre de la marca: | UCHI |
| Certificación: | Completed |
| Número de modelo: | BLDC 14850 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1000pcs |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Estándar |
| Tiempo de entrega: | 5-7 días |
| Condiciones de pago: | T/t, unión occidental |
| Capacidad de la fuente: | 5000 piezas de piezas |
|
Información detallada |
|||
| Ningún voltaje de la carga: | 47.97V | Velocidad en EFF MAX: | 388.1rpm |
|---|---|---|---|
| Certificado: | 3C | Potencia de salida en POUT MAX: | 864.8w |
| Apriete máximo: | 23.61mn.m | ||
| Resaltar: | 14850 BLDC Brushless Motors,Precise Control BLDC Brushless Motors,BLDC Brushless Motors |
||
Descripción de producto
BLDC 14850 Brushless Motors With Precise Control Low Noise And EMI
Typical Applications:
1. Home Application
2. Business Equipment

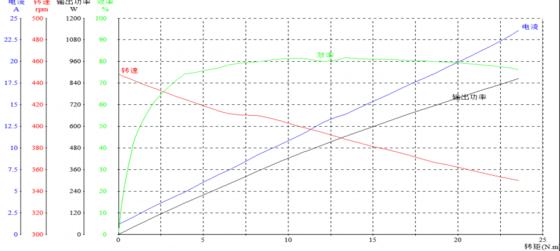

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | TIME |
| V | A | W | RPM | mN.m | W | % | S | |
| NO LOAD | 47.97 | 1.124 | 53.92 | 448.7 | 0.02 | 1.127 | 2.1 | 0 |
| EFF MAX | 48 | 13.88 | 666.2 | 388.1 | 13.39 | 544.1 | 81.7 | 44.45 |
| POUT MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| TORQUE MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| END | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
Features:
1. Precise Control: BLDC motors offer nearly instantaneous control of speed and torque. They can also maintain a holding torque when stationary, which is useful in applications requiring precise motion control.
2. Low Noise and EMI: BLDC motors produce less noise and electromagnetic interference (EMI) compared to brushed motors. This makes them suitable for applications where minimal electrical noise is required.
