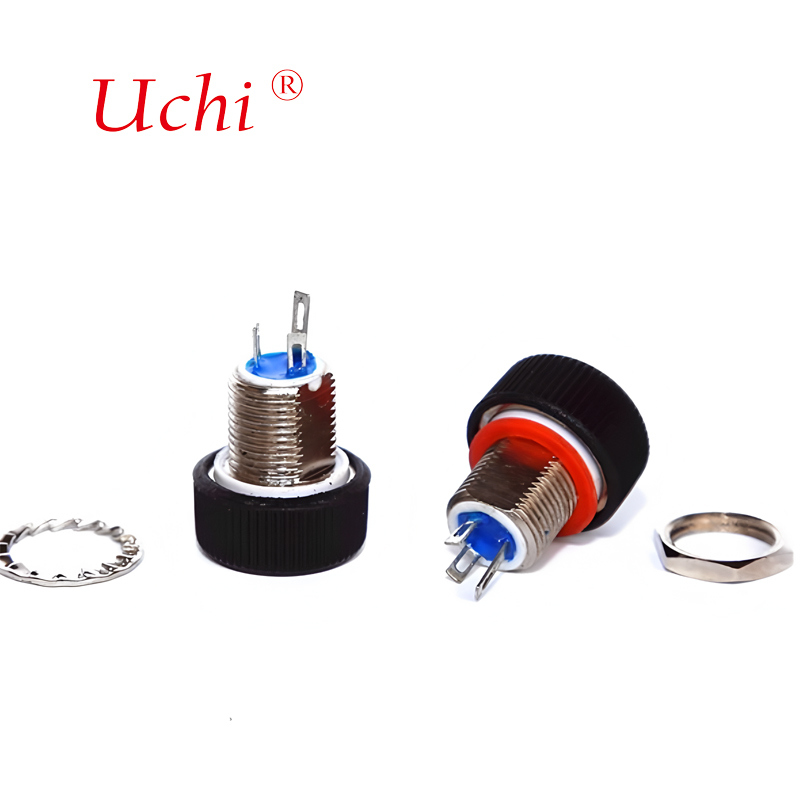

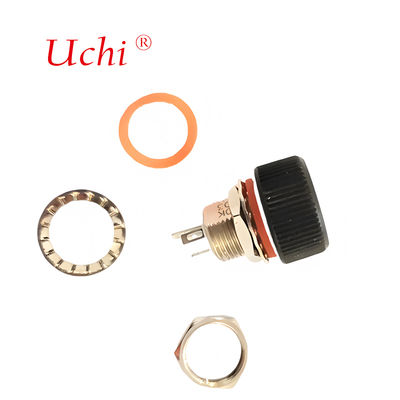

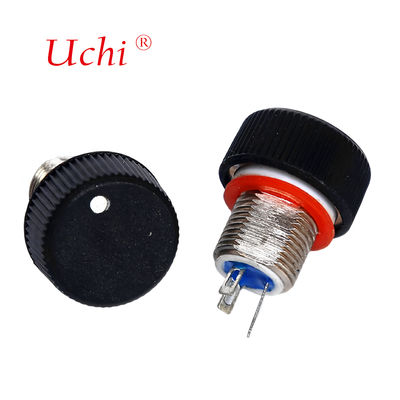

P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
Datos del producto:
| Lugar de origen: | Dongguan, Guangdong, China |
| Nombre de la marca: | Uchi |
| Certificación: | SMC |
| Número de modelo: | P16NP (WI1609) |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100pcs |
|---|---|
| Precio: | Negociable |
| Condiciones de pago: | T/T, Paypal, Western Union, MoneyGram |
| Capacidad de la fuente: | 50000000pcs por mes |
|
Información detallada |
|||
| Rango de resistencia estándar: | 100 a 2 megaohmios | Tolerancia a la resistencia: | ± 10% |
|---|---|---|---|
| Resistencia mínima absoluta: | 1% o 10 ohmios máx. | Variación de resistencia de contacto: | 3% máx. |
| Resistencia a aislamiento: | 500 VCC, 1000 megaohmios mín. | Resistencia dieléctrica: | 101,3 kPa 900 Vca 8,5 kPa 500 Vca |
| Ángulo de ajuste: | 265° nom | Clasificación de potencia (200 voltios máx.): | 1 vatios (70°C), 0 vatios (125°C) |
| Rango de temperatura: | -55 ° C a +125 ° C | Coeficiente de temperatura: | ± 250 × 10-6/°C o ± 100 × 10-6/°C |
| Resaltar: | metal ceramic potentiometer 1w,fine-tuning knob potentiometer,precision potentiometer with warranty |
||
Descripción de producto
P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel, minimizing required clearance.
Product Features
- P16 - version for professional and industrial applications (cermet) 1 W at 40℃
- PA16 - version for professional audio applications (conductive plastic) 0.5 W at 40℃
- Compact (integrated) design
- High dielectric strength: 2500 VRMs
- Fully sealed and panel sealed construction
- Metallic or plastic knob options available
- Custom knob options upon request
Specification Parameters
Electrical Characteristics
| Standard Resistance Range | 100 to 2 megohms (see standard resistance table) |
|---|---|
| Resistance Tolerance | ±10% std. (tighter tolerance available) |
| Absolute Minimum Resistance | 1% or 10 ohms max. (whichever is greater) |
| Contact Resistance Variation | 3% max. |
| Insulation Resistance | 500 Vdc, 1000 megohms min. |
| Dielectric Strength | 101.3 kPa 900 Vac 8.5 kPa 500 Vac |
| Adjustment Angle | 265° nom. |
Environmental Characteristics
| Power Rating (200 volts max.) | 1 watt (70°C), 0 watt (125°C) |
|---|---|
| Temperature Range | -55°C to +125°C |
| Temperature Coefficient | ±250×10-6/°C or ±100×10-6/°C |
| Vibration | 98 m/s2, 1%ΔTR |
| Shock | 490 m/s2, 1%ΔTR |
| Load Life | 1,000 hours 1 watt @ 70°C (5%ΔTR) |
| Rotational Life | 10000 cycles: (15%ΔTR; 6%, CRV) |
Physical Characteristics
| Mechanical Angle | 305° nom. |
|---|---|
| Torque | (3.5~50) mN*m |
| Stop Strength | 350 mN*m min. |
Product Size
Application Areas
P16NP metal ceramic rotary potentiometer is ideal for: Network communication systems, Night vision goggles, Audio headsets, Communication devices, Remote controls, Hot air blowers, Spotlights for scenes, Air fan controls, Industrial dashboards, Variable frequency drives, and Electric wheelchairs.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
