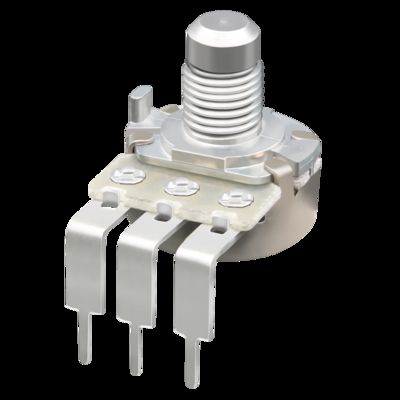

RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers
Datos del producto:
| Lugar de origen: | Dongguan, Guangdong, China |
| Nombre de la marca: | Uchi |
| Certificación: | SMC |
| Número de modelo: | RD16 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100pcs |
|---|---|
| Precio: | Negociable |
| Condiciones de pago: | T/T, Paypal, Western Union, MoneyGram |
| Capacidad de la fuente: | 50000000pcs por mes |
|
Información detallada |
|||
| Gama total de la resistencia: | B50Ω~B2MΩ A,C:1KΩ~2MΩ | Tolerancia a la resistencia: | ± 10% |
|---|---|---|---|
| Acabar con la resistencia: | ≤ 3Ω | Resistencia más estrecha: | B(Lineal) A(Logaritmo) C(Registro inverso) |
| Resistencia a la insilación: | ≥100mΩ | Resistencia dieléctrica: | AC1000V 1 minuto |
| Ángulo eléctrico: | 280 ° ± 10 ° | Fuerza: | 0.05W |
| Temperatura de trabajo: | -10 ℃ ~ 70 ℃ | Ángulo de rotación total: | 300° ± 10° |
| Resaltar: | RV16 metal shaft potentiometer,precision rotary potentiometer,CTR potentiometer with warranty |
||
Descripción de producto
High-precision RD16 series potentiometers with switch functionality, designed for professional audio equipment, home appliances, lighting control systems, and various electronic devices.
| Dimensions | 17mm |
|---|---|
| Total rotational angle | 300°±10° |
| Rated power | 0.05W |
| Maximum operating voltage | AC 50V/ DC 20V |
| Operating temperature | -10℃ ~70℃ |
| Rotational life | 10,000 cycles (Min) |
- Smooth rotation with reliable performance

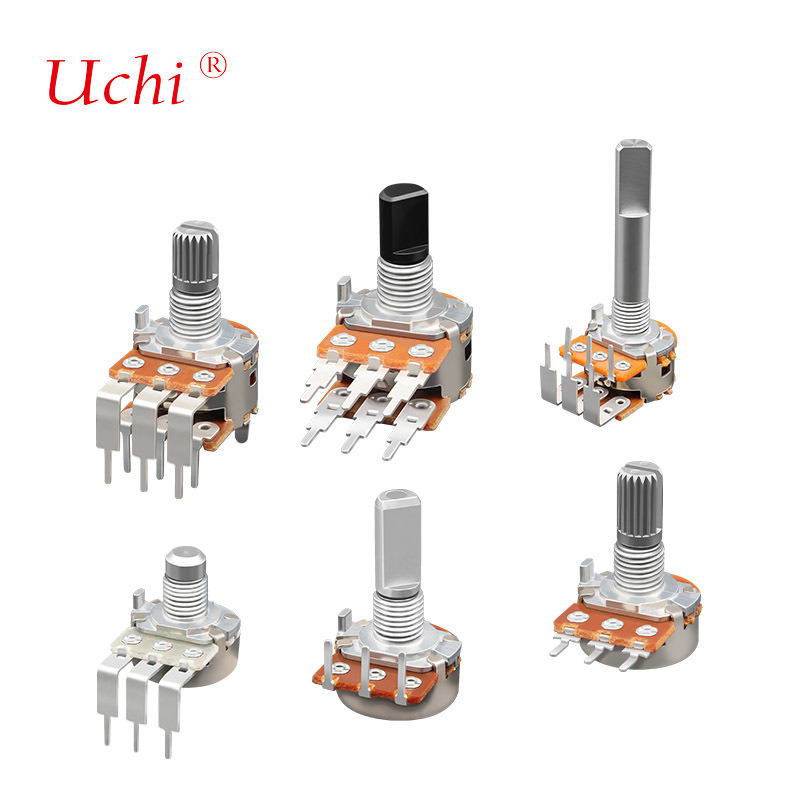

- Multiple variants available
- Functions include volume adjustment, voltage regulation, temperature control, and speed regulation
- Integrated switch for power on/off control
- Rotational Torque: 20~200gf.cm
- Total Rotational Angle: 300°±10°
- Shaft Stop Strength: ≥3.0Kgf.cm
- Shaft Wobble (mm p-p): Within(0.7xL/20)mm p-p
- Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
- Resistance Taper: A/B/C
- Rated Power: 0.05W
- Maximum Operating Voltage: AC 50V/ DC 20V
- Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
- Insulation Resistance: 100MΩ 1 Minute at DC 100V
- Dielectric Voltage: 1 Minute at AC 250V
- Rotational life: 10,000 cycles (Min)
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
