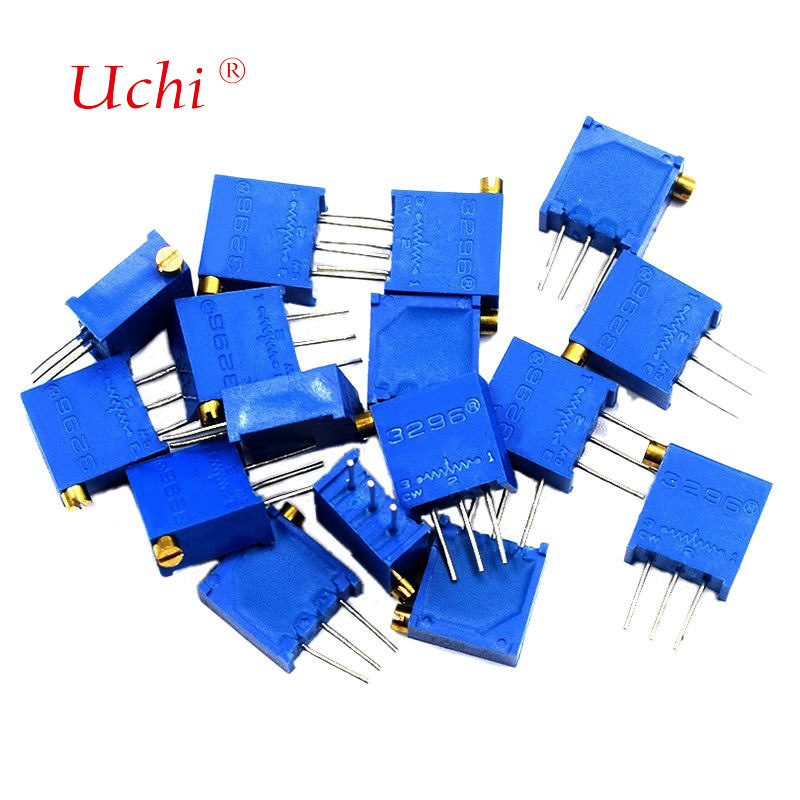

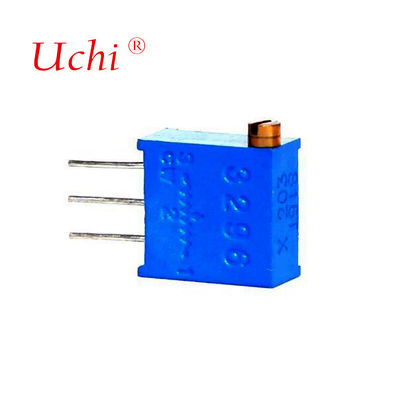

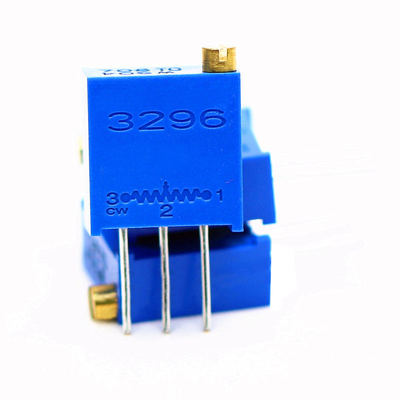

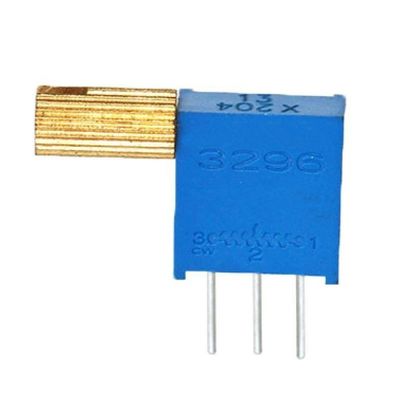

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Datos del producto:
| Lugar de origen: | Dongguan, Guangdong, China |
| Nombre de la marca: | Uchi |
| Certificación: | SMC |
| Número de modelo: | 3296X |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100pcs |
|---|---|
| Precio: | Negociable |
| Condiciones de pago: | T/T, Paypal, Western Union, MoneyGram |
| Capacidad de la fuente: | 50000000pcs por mes |
|
Información detallada |
|||
| Resistencia: | 10Ω ~ 5mΩ | Especificación: | 3296W\3296Z\3296Y\3296X\3296P |
|---|---|---|---|
| Características: | Varias vueltas | Resistencia terminal: | ≤ ± 1%R o 2Ω |
| Resistencia a aislamiento: | ≥ 1GΩ (100V CA) | Rango de temperatura: | -55°C~+125°C |
| Tolerancia a la resistencia: | ± 10% | Tamaño / dimensión: | 10*9,6mm |
| Potencia nominal: | 0.5 W (máximo 300 V) | El TCR: | ± 250*10-6/°C |
| Resaltar: | 8mm copper trimmer potentiometer,10k precision potentiometer with knob,3296X long knob potentiometer |
||
Descripción de producto
The 3296X is a high-precision multi-turn potentiometer with 5% or 10% adjustment accuracy. Featuring a resistance range of 10Ω to 5MΩ and total mechanical stroke of 28±2 turns, it's among the most widely used multi-turn potentiometers in industrial applications.
- High accuracy and reliability for demanding applications
- Extended service life with durable construction
- High resolution enables precise adjustments
- Ideal for signal gain and linearity adjustment
- Available in multiple models (3296W, 3296X, 3296P, 3296Y, 3296Z)
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 640V (DC or AC peak value) |
| Effective electrical travel | ≥70% of mechanical travel |
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Total mechanical travel | 28±2 lap |
| Starting torque | ≤25mN.m |
Standard packaging: 50 pcs/tube (3296W, 3296Y) or 40 pcs/tube (3296X, 3296Z, 3296P)
This precision potentiometer is widely used in:
- Industrial control systems
- Communication equipment
- Precision instruments
- Automotive electronics
- LCD panels
- Switching power supplies
